Name: Intersections

Display Field: Street1

Type: Feature Layer

Geometry Type: esriGeometryMultipoint

Description: This data contains road names, number of Turns, Shared Lanes, Guide Lines, Marked Crosswalks, Approaches, Crosswalk Type, and Intersection Control system at each intersection. The layer was created using the intersect geoprocessing tool with Road Centerlines layer as the Input Data and the Output Type set to Point. Then, a script called New Notebook under the General ArcGIS Pro Project GDB on the ENG Drive was created to populate Street2 based on a unique Street1 road name identifier. Data completeness is in progress by the ENG Traffic/Transportation Team.Created: June 2025Last updated: July 2025Update frequency: Yearly

Copyright Text: Created and maintained by the City of McKinney GIS Department, Engineering Department

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2498263.419227913
YMin: 7096638.644963548
XMax: 2570164.154334888
YMax: 7165992.43114014
Spatial Reference: 102738  (2276)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [230, 0, 0, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Street1 ( type: esriFieldTypeString, alias: Street1, length: 100 )
• Street2 ( type: esriFieldTypeString, alias: Street2, length: 100 )
• NumberOfTurnLanes ( type: esriFieldTypeInteger, alias: NumberOfTurns )
• NumberOfSharedLanes ( type: esriFieldTypeInteger, alias: NumberOfSharedLanes )
• NumberOfGuideLines ( type: esriFieldTypeInteger, alias: NumberOfGuideLines )
• NumberOfMarkedCrosswalks ( type: esriFieldTypeInteger, alias: NumberOfMarkedCrosswalks )
• CrosswalkType ( type: esriFieldTypeString, alias: CrosswalkType, length: 255 , Coded Values: [Transverse: Transverse] , [Longitudinal: Longitudinal] , [Brick: Brick] )
• IntersectionControl ( type: esriFieldTypeString, alias: IntersectionControl, length: 255 , Coded Values: [All-Way Stop: All-Way Stop] , [Stop: Stop] , [Signal: Signal] , ...7 more... )
• NumberOfApproaches ( type: esriFieldTypeInteger, alias: NumberOfApproaches )
• OldObjectID ( type: esriFieldTypeInteger, alias: OldObjectID )
• FeatSeq ( type: esriFieldTypeInteger, alias: FeatSeq )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

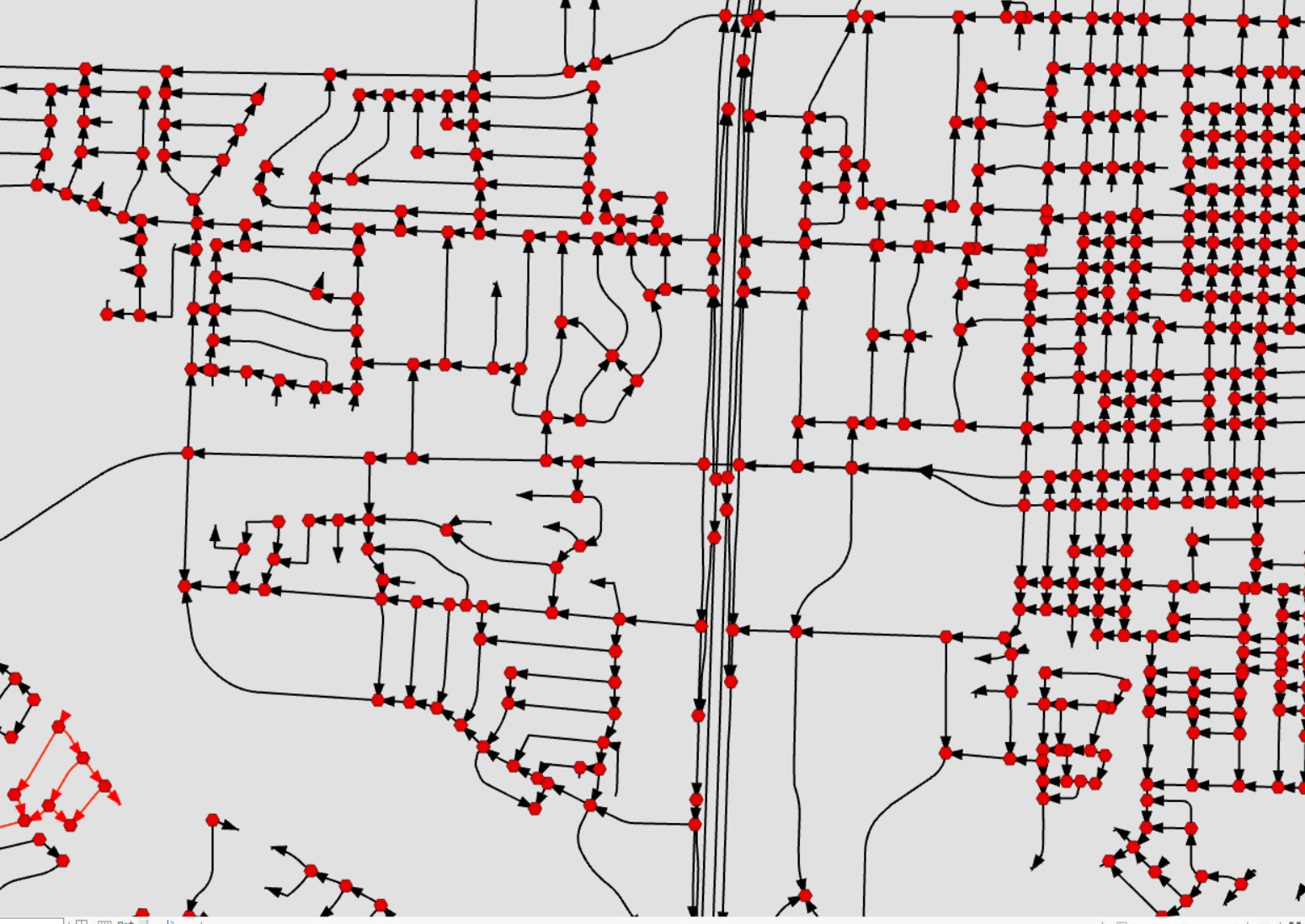

  Iteminfo   Thumbnail   Metadata
